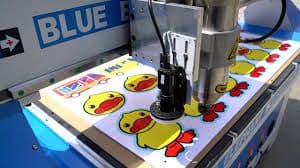

Scan & Cut
Powered by a CCD camera Scans registration dots and cuts the pattern accordingly
Vision Router
VisionCut is a high-precision CNC router designed for signage and printing industries, featuring a CCD camera and multi-tool knife system for fast, accurate cutting of foam boards, PVC sheets, vinyl, and printed materials.
Specifications
Working Area:2500 x 1300 mm (4 x 8 ft)
Spindle Power:7.5 kW
System Control:Computer and Handheld
Best For Materials:Acrylic, ACM, Aluminum, Coroplast, Foam Board, etc
Spindle Type:ATC 5 holders
$31,000
Description
VisionCut is a next-generation CNC cutting system designed specifically for the signage, printing, and packaging industries. Equipped with an intelligent CCD camera, VisionCut automatically detects printed registration marks and contours, ensuring perfect alignment between the artwork and the cutting path. This eliminates manual positioning errors and delivers clean, accurate results every time. The machine supports multiple knife tools—including oscillating knives, drag knives, V-cut, and creasing wheels—allowing you to process a wide range of materials such as foam board, KT board, corrugated plastic, vinyl stickers, cardboard, and more. Combined with a rigid motion platform and optimized cutting algorithms, VisionCut offers fast production speeds while maintaining precise detail even on complex shapes. Whether you run a print shop, sign business, packaging studio, or prototyping workshop, VisionCut streamlines your workflow with accurate contour cutting, efficient job handling, and user-friendly operation. It is the ideal solution for businesses looking to improve productivity and achieve consistent professional-grade results.
Key Features

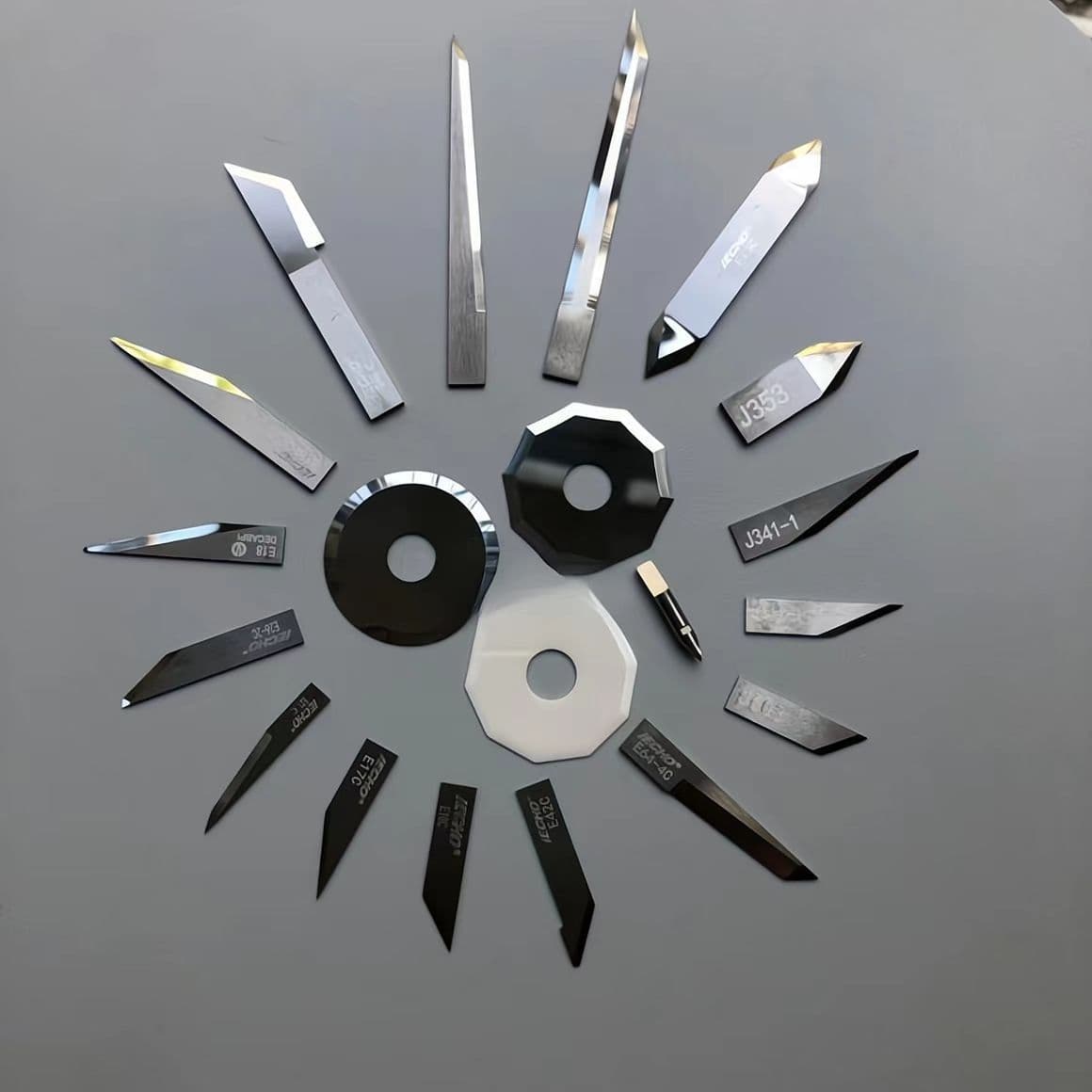

Hard & Soft Material Cutting
Uses a knife and a strong spindle Suitable for soft materials (cut with the knife) Also handles harder materials like aluminum, acrylic, and ACM
Scan & Cut
Powered by a CCD camera Scans registration dots and cuts the pattern accordingly
Hard & Soft Material Cutting
Uses a knife and a strong spindle Suitable for soft materials (cut with the knife) Also handles harder materials like aluminum, acrylic, and ACM
Parts Used for This Model

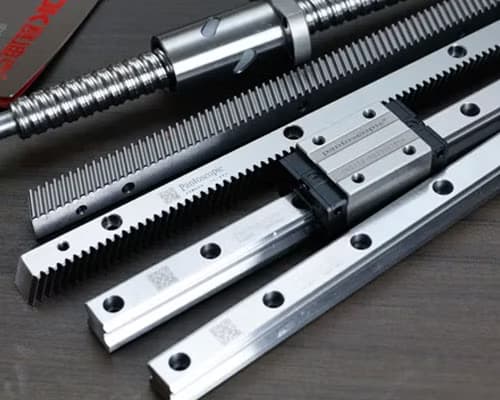

Rack and Pinion Transmission

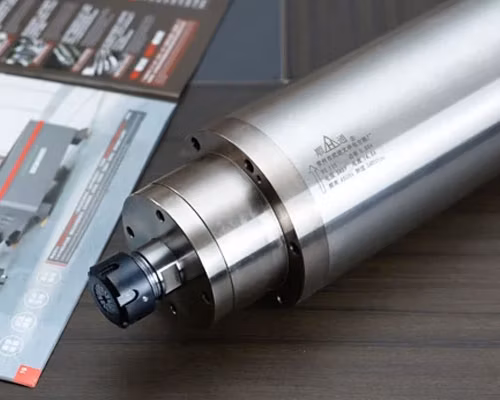

7.5 kW Spindle

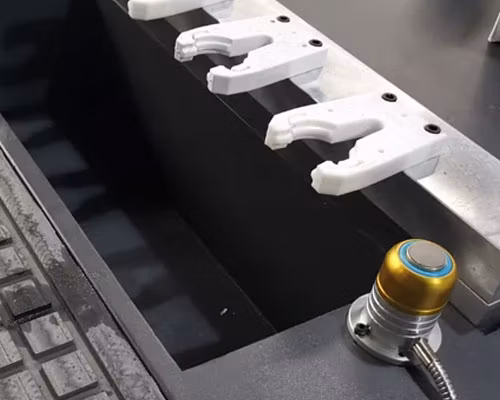

Automatic Tool Change

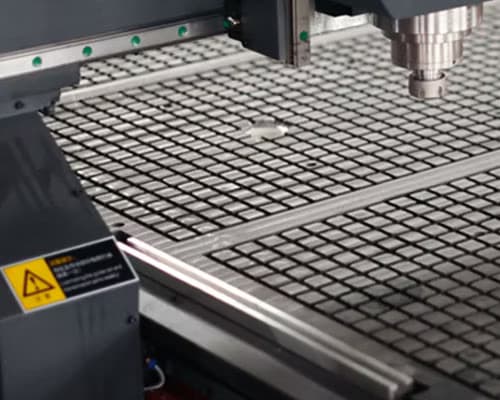

Vacuum Table

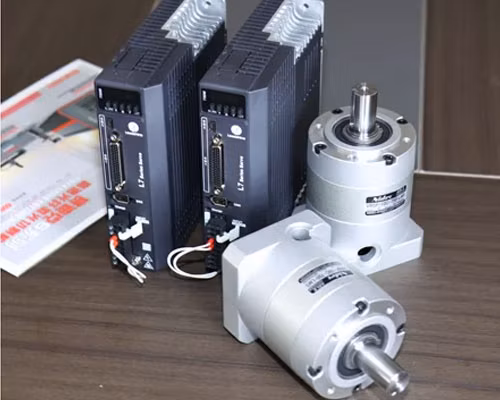

Servo Motor

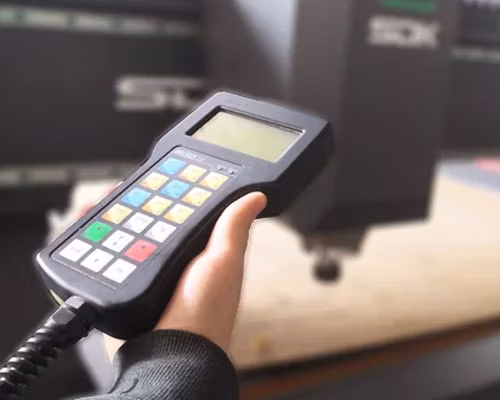

Handheld Controller
Showing parts 1 to 4 of 6
Package Includes

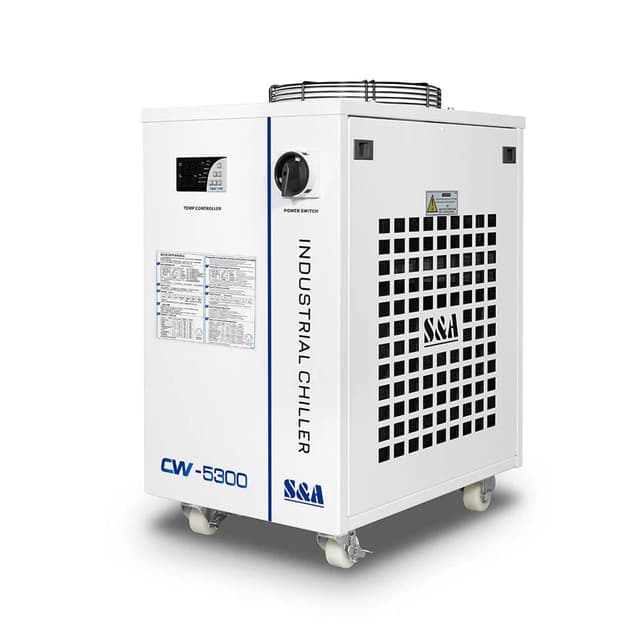

Water Chiller
Vacuum Pump
Industrial Applications
Trusted across diverse industries for precision, reliability, and performance
Making Signs
Produces various types of signs, including LED signs, standard acrylic signs, and more
Print Graphics Cutting
Supports the printing industry by cutting graphics on soft materials like foam board, coroplast, and similar substrates Ideal for creating clean graphic cutouts
Technical Specifications
| Structure | Heavy-duty steel frame, stress-relief treated |
| Working Area | 2500 x 1300 mm (4 x 8 ft) |
| Repeat Accuracy | ±0.01 mm |
| Motion System | X/Y helical rack + linear guide; Z silent screw |
| Motors | AC servo motors + reducer (dual-Y) |
| Controller | Dual 3-axis ATC controller (Computer + Handheld) |
| CCD System | High-resolution CCD, auto-edge detect & contour correction |
| Table | Phenolic resin vacuum table + T-slot |
| Materials | Wood, MDF, acrylic, PVC, ABS, foam board, composites, soft metals (Al/Cu) |
